Specifications

Product Type	Fuse Link
Brand	Mersen
Series	AJT
Application	Protection at all levels of power distribution
Breaking Capacity	300 kA
Rated Current	250 A
Rated Voltage	600 V AC / 400 V DC
Speed Class	Time Delay/Class J
Body Style	Bolted Tag
Fixing Centres	133 mm
Material	Body: GMG, Terminal:Brass
Length	181.1 mm
Weight	0.81 kg (Approx.)
Width	Ø 54 mm
Standards and Approvals	IEC 60269-2-1

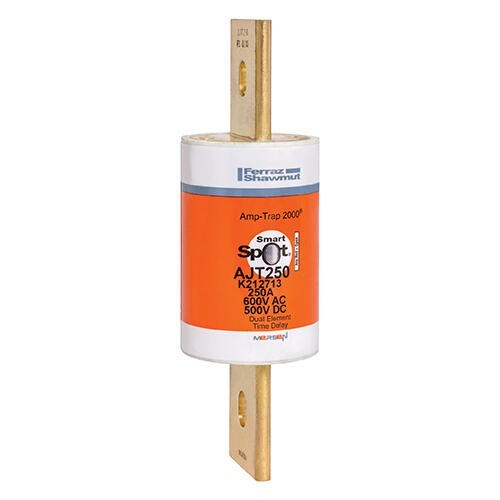

Mersen AJT250 Power Fuse 250A 600/500VAC/DC Class J 54mm Dia x 181.1mm L Blade Terminal Class J 200kA
