Specifications

Product Type	Time Delay Fuse
Brand	MERSEN
Body Material	GMG
Body Size	27 mm Dia x 117.6 mm L
Body Style	Bolted Tag
Breaking Capacity	200 kA
Connection/Terminal Material	Silver Plated Copper
Fuse Class	Class J
Insulation Material	GMG
Mounting Type	Clip, Bolted
Rated Current	70 A
Rated Frequency	50/60 Hz
Rated Voltage	600/400 VAC/VDC
Terminal Type	Blade
Weight	0.1093 kg

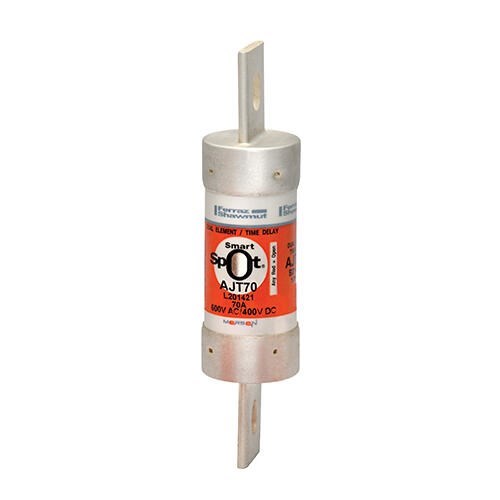

Mersen AJT70 Power Fuse 70A 600/400VAC/DC Class J 27mm Dia x 117.6mm L Blade Terminal Class J 200kA
