Specifications

Product Type	Fuse link
Brand	Mersen
Series	AJT
Application	Motor circuits, mains, feeders, branch circuits, lighting/heating loads, transformers and control panels
Utilization Category	Class J
Breaking Capacity	200 kA AC
Rated Current	90 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC / 400 V DC
Speed Class	Time delay
Body Style	Blade fuse
Connection/Termination	Blade terminals
Fixing Centres	92 mm
Indicators	Non-indicating; SmartSpot indicator version available
Material	Fiberglass body; high-grade silica filler; metal end caps
Mounting	Fuse holder / fuse block
Size Code	Class J 401–600 A
Height	117 mm
Weight	0.1093 kg
Width	27 mm
Standards and Approvals	UL 248-8; CSA C22.2 No. 248.8; IEC 60269-2-1

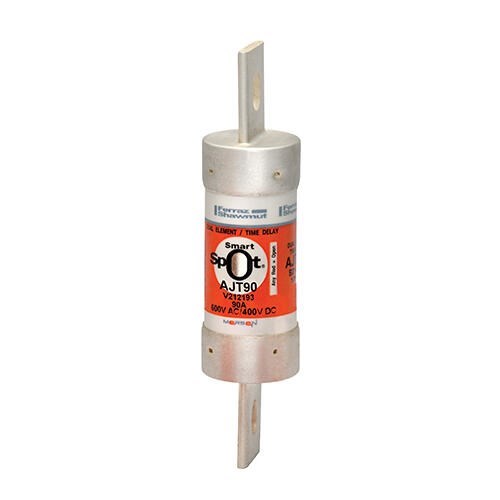

Mersen AJT90 Power Fuse 90A 600/400VAC/DC Class J 27mm Dia x 117.6mm L Blade Terminal Class J 200kA
