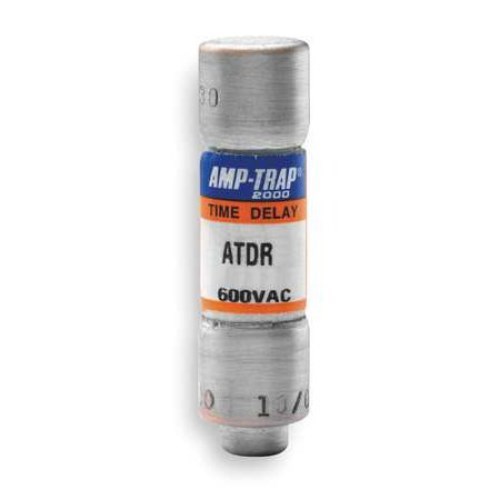

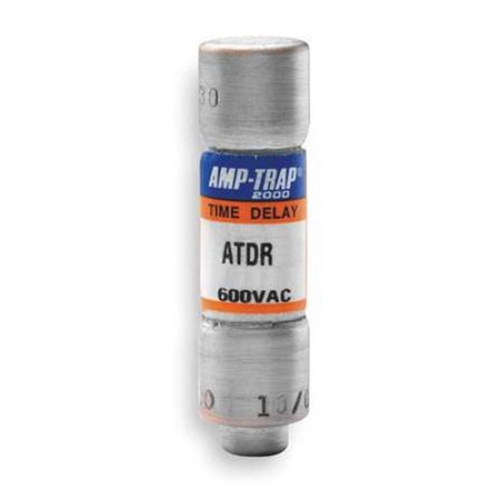

Mersen ATDR10 Power Fuse 10A 600/300VAC/DC Class CC 10.4mm Dia x 38.1mm L Ferrule Terminal Class CC 200kA

Product Code: ATDR10

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Fuse Link
Brand Mersen
Series ATDR
Breaking Capacity 200 kA
Rated Current 10 A
Rated Voltage 600 V AC / 300 V DC
Speed Class Time-delay
Body Style Cylindrical
Material Body: GMG, Terminal:Tin-Plated Copper
Length 38.1 mm
Weight 0.0077 kg (Approx.)
Width Ø 10.4 mm

Documents

IPD Product Catalogue V17
MERSEN Datasheet
