Specifications

Product Type	Time Delay Fuse
Brand	MERSEN
Body Material	GMG
Body Size	10.4 mm Dia x 38.1 mm L
Body Style	Rejection
Breaking Capacity	200 kA
Connection/Terminal Material	Tin Plated Copper
Fuse Class	Class CC
Insulation Material	GMG
Mounting Type	Clip
Rated Current	9 A
Rated Frequency	50/60 Hz
Rated Voltage	600/300 VAC/VDC
Terminal Type	Ferrule
Weight	0.0077 kg

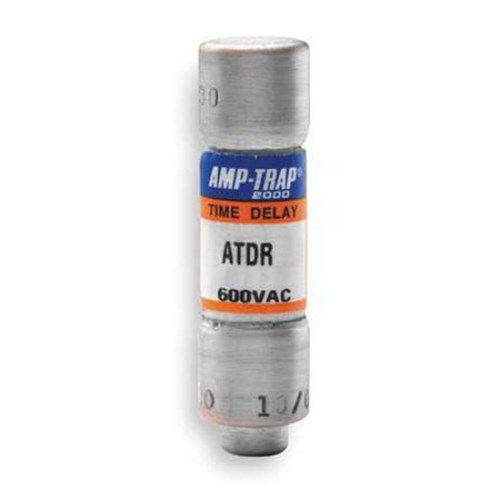

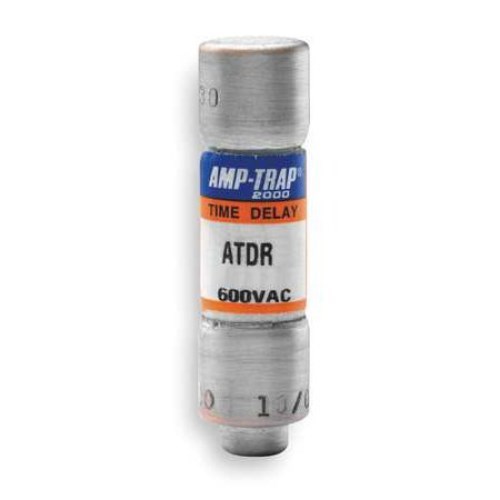

Mersen ATDR9 Power Fuse 9A 600/300VAC/DC Class CC 10.4mm Dia x 38.1mm L Ferrule Terminal Class CC 200kA
