Specifications

Product Type	Power Fuse
Brand	MERSEN
Body Material	GMG
Body Size	0.41 in Dia x 1.5 in L
Body Style	Rejection
Breaking Capacity	200 kA
Connection/Terminal Material	Tin Plated Copper
Fuse Class	Class CC
Insulation Material	GMG
Mounting Type	Clip
Rated Current	25 A
Rated Frequency	50/60 Hz
Rated Voltage	600 VAC/VDC
Terminal Type	Ferrule
Weight	0.017 lb

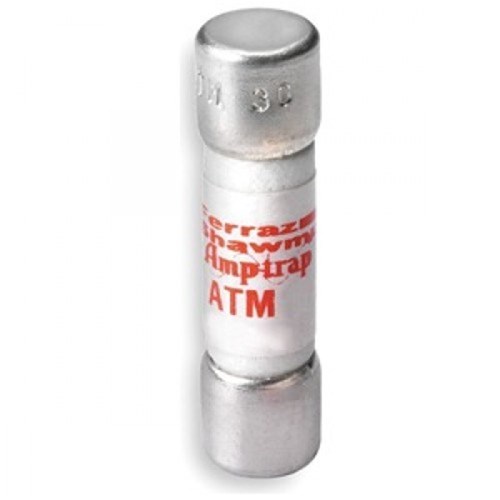

Mersen ATMR25 Power Fuse 25A 600VAC/DC Class CC Rejection 0.41 in Dia x 1.5 in L 200kA Fast Acting
