Specifications

Product Type	Fuse Link
Brand	Mersen
Series	ATQ
Application	Supplemental protection of lighting, solenoid, motor and transformer circuits
Breaking Capacity	200 kA
Rated Current	3 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC
Speed Class	Time Delay
Body Style	Cylindrical body with ferrule end caps
Material	Body:GMG, Terminal:Tin-Plated Copper
Height	38.1 mm
Weight	0.0077 kg (Approx.)
Width	Ø10.4 mm
Standards and Approvals	UL Listed to UL 248-4 (File E2137), CSA Certified to C22.2 No. 248.4, DC Listed to UL 248

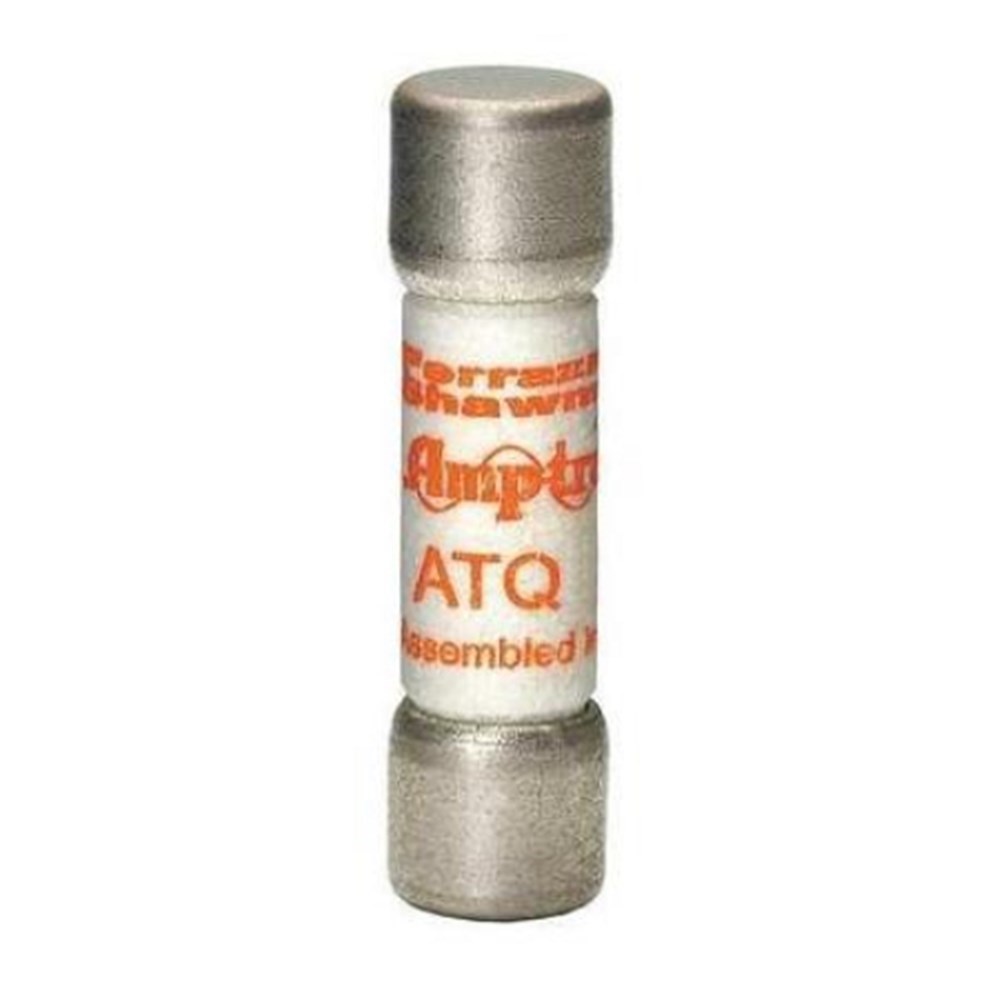

Mersen ATQR3 Power Fuse 3A 600/300VAC/DC Class CC 10.4mm Dia x 38.1mm L Ferrule Terminal Class CC 200kA
