Specifications

Product Type	Fuse link
Brand	Mersen
Series	ATQR
Application	Control transformers, solenoids, inductive loads, lighting, heating and general-purpose loads
Utilization Category	Class CC
Breaking Capacity	200 kA AC / 100 kA DC
Rated Current	8 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC / 300 V DC
Speed Class	Time Delay
Body Style	Cylindrical
Connection/Termination	Ferrule end caps
Indicators	No
Material	Body: Fiberglass; Contact: Tin-plated copper
Mounting	Fuse holder
Size Code	10 x 38
Length	38 mm
Weight	0.0077 kg
Width	Ø 10.3 mm
Standards and Approvals	UL 248-4; CSA C22.2 No. 248.4; DC listed to UL 248 UL Listed File E2137; CSA Certified

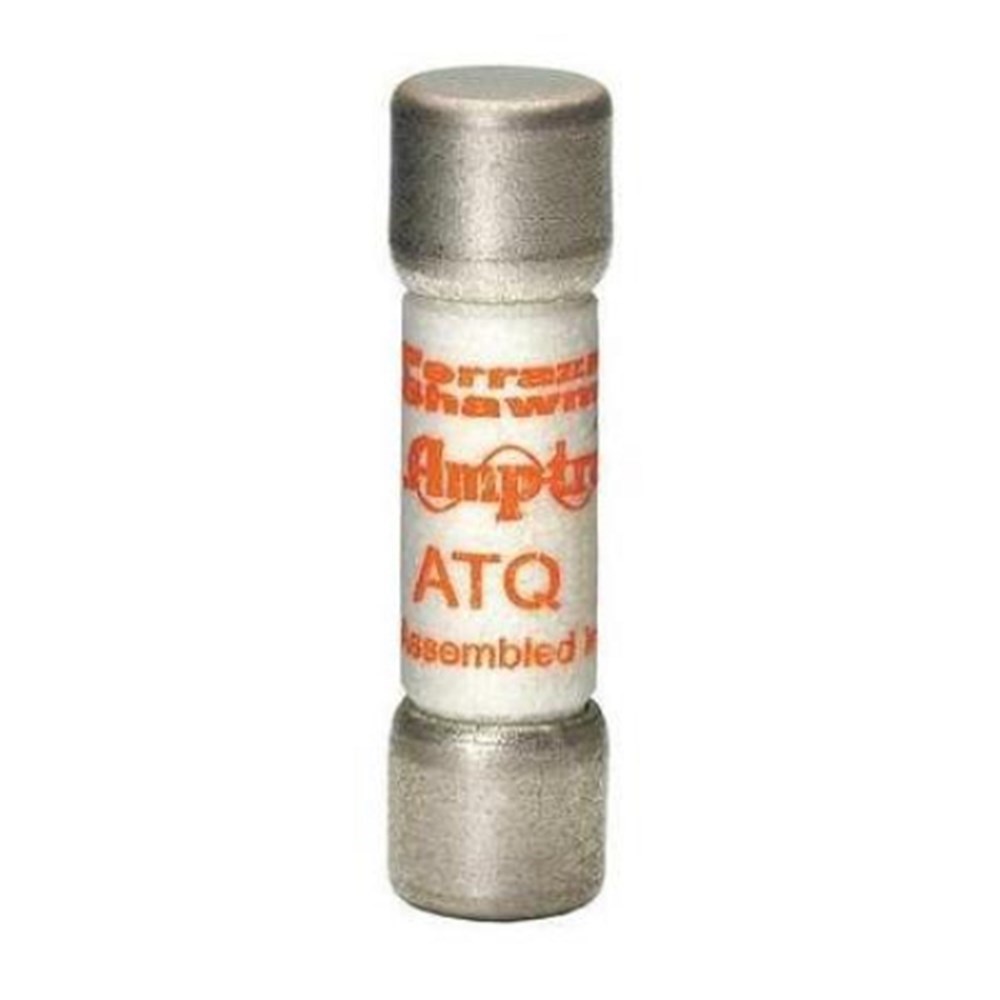

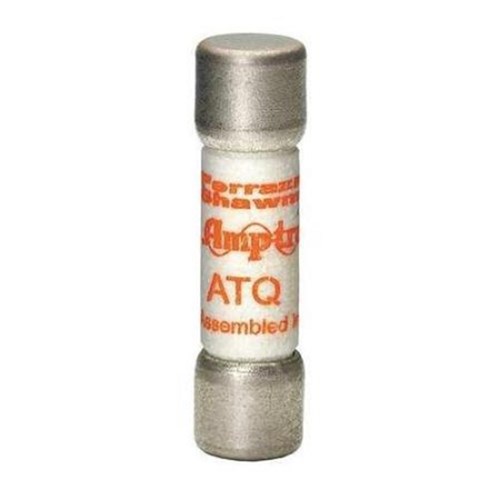

Mersen ATQR8 Power Fuse 8A 600/300VAC/DC Class CC 10.4mm Dia x 38.1mm L Ferrule Terminal Class CC 200kA
