Specifications

Product Type	Class CC time-delay fuse
Brand	Mersen
Series	ATQR
Application	Control transformers, solenoids, inductive loads, lighting and general-purpose loads
Utilization Category	Class CC
Breaking Capacity	200 kA AC
Rated Current	9 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC / 300 V DC
Speed Class	Time delay
Body Style	Cylindrical rejection fuse
Connection/Termination	Rejection-style ferrule end caps
Indicators	without indicator
Material	Fiberglass body
Mounting	Class CC fuse holder
Size Code	10 x 38
Length	38 mm
Weight	0.0077 kg
Width	Ø 10 mm
Standards and Approvals	UL 248-4; CSA C22.2 No. 248.4

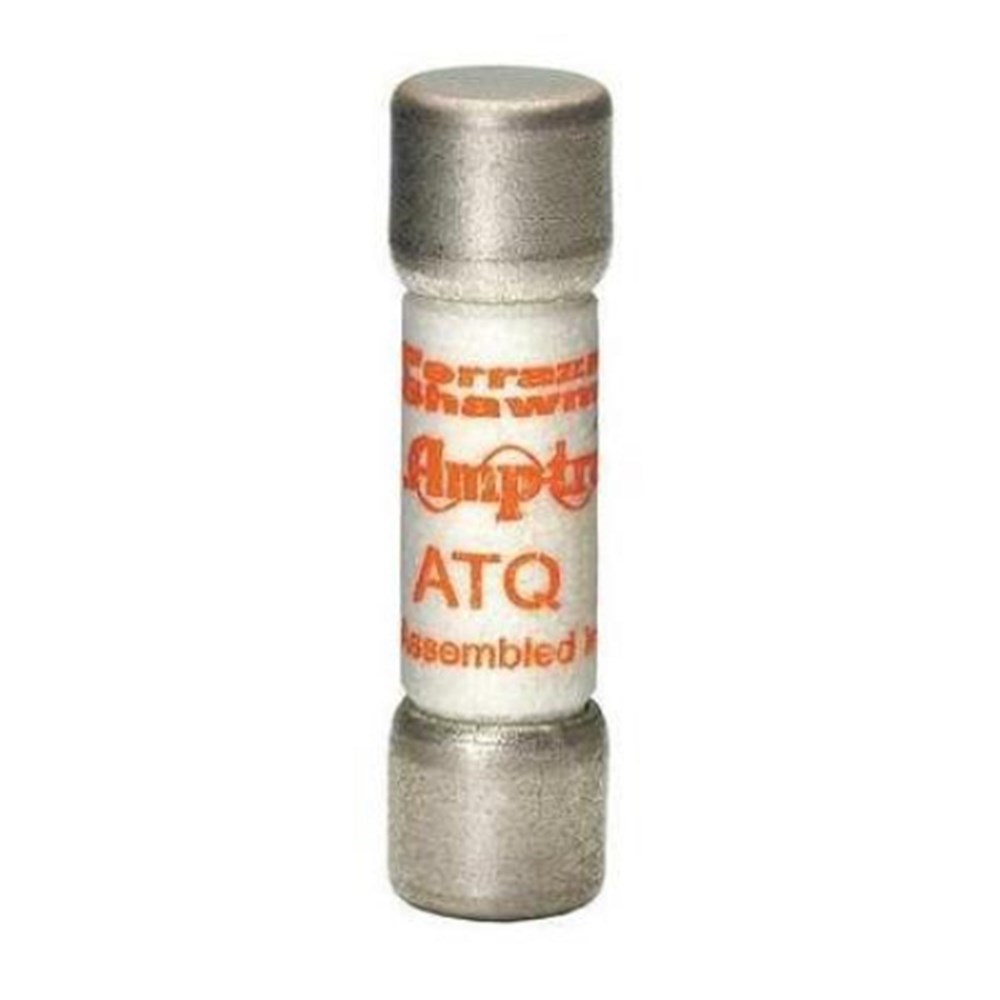

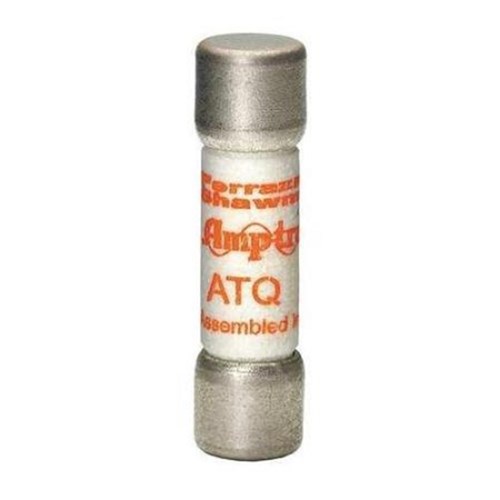

Mersen ATQR9 Power Fuse 9A 600/300VAC/DC Class CC 10.4mm Dia x 38.1mm L Ferrule Terminal Class CC 200kA
