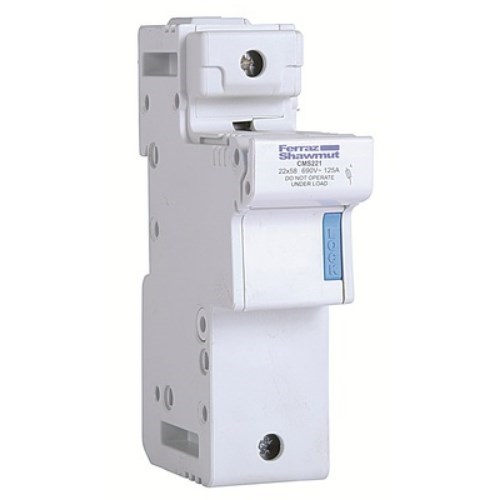

Mersen CMS221SM Compact Fuse Holder 125A 1-P 690VAC/DC DIN Rail Mount 35sq-mm Cable Entry 22mm Dia x 57mm L Fuse

Product Code: CMS221SM

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Modular fuse holder
Brand Mersen
Series Modulostar CMS22
Application Protection of motors, transformers, low-voltage distribution and control circuits, compact space applications
Suitable For 22 x 58 mm striker fuse links
Rated Current 125 A
Rated Short Circuit Current 100 kA
Rated Voltage 690 V AC / 690 V DC
Cable Entry Rigid wire 1.5-50 mm², multistrand wire 35 mm²
Connection/Termination Screw terminals
Mounting DIN rail
IP Rating IP20
Standards and Approvals IEC 60269-2, IEC 60947-3, RoHS

Documents

IPD Product Catalogue V17
MERSEN Datasheet
