Specifications

Product Type	Fuse Link
Brand	Mersen
Series	NH
Application	General purpose cable and line protection
Utilization Category	gG
Breaking Capacity	120 kA
Rated Current	50 A
Rated Voltage	500 V AC / 250 V DC
Body Style	Square body
Connection/Termination	Knife blade
Indicators	Double indicator
Material	Body:Ceramic, silver-plated copper contacts
Size Code	NH1
Depth	64 mm (approx.)
Length	135 mm (approx.)
Weight	0.28 kg (Approx.)
Width	30 mm (approx.)
Standards and Approvals	IEC 60269-1 and -2, VDE 0636 Part 201

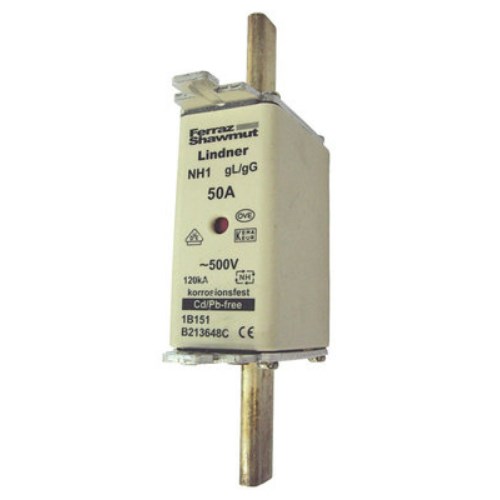

Mersen NHG1-050 Blade Type Fuse Link 50A 500VAC NH1 29.5mm 120kA For: NH1 Bases and Disconnects
