Specifications

Product Type	Fuse Link
Brand	Mersen
Series	NH
Application	General purpose cable and line protection
Utilization Category	gG
Breaking Capacity	120 kA
Rated Current	630 A
Rated Voltage	500 V AC / 250 V DC
Body Style	Square body
Connection/Termination	Knife blade
Indicators	Top indicator
Material	Body:Ceramic, silver-plated copper contacts
Size Code	NH4
Length	199.5 mm (approx.)
Weight	2.59 kg (Approx.)
Width	100 mm (approx.)
Standards and Approvals	IEC 60269-1 and -2, VDE 0636 Part 201

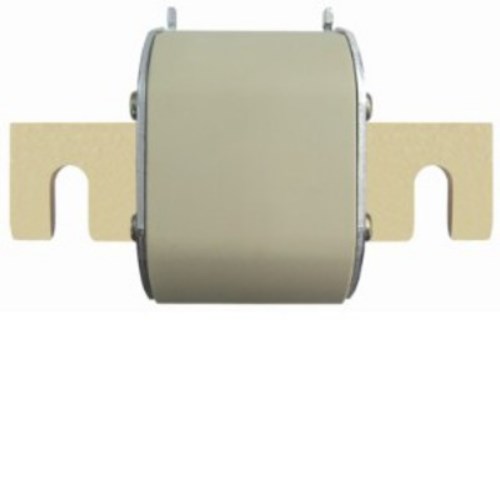

Mersen NHG4-630 Blade Type Fuse Link 630A 500VAC NH4 90mm 120kA For: NH4 Base
