Specifications

Product Type	Fuse holder
Brand	Mersen
Series	US3J UltraSafe Class J
Application	600 V motors, transformers, lighting, heating, control circuits and general loads; non-load disconnect
Breaking Capacity	200 kA SCCR
Rated Current	30 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC/DC
Connection/Termination	Pressure plate / screw terminal
Fuse Holder	AJT, A4J, HSJ Class J fuses
Indicators	without indicator
Material	Polyamide body; tin-plated copper contacts
Mounting	35 mm DIN rail
Size Code	Class J / 22 x 58
Depth	106 mm overall
Length	114 mm
Weight	0.2087 kg
Width	32.5 mm
IP Rating	IP20
Standards and Approvals	UL 4248-8; IEC 60269-1; IEC 60947-3

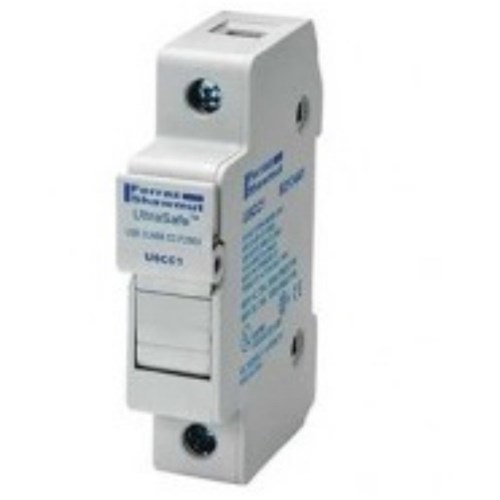

Mersen US3J1 Fuse Holder 30A 600VAC/DC 30sq-mm Cable Entry 21mm Dia x 57mm L Fuse For: AJT/A4J
