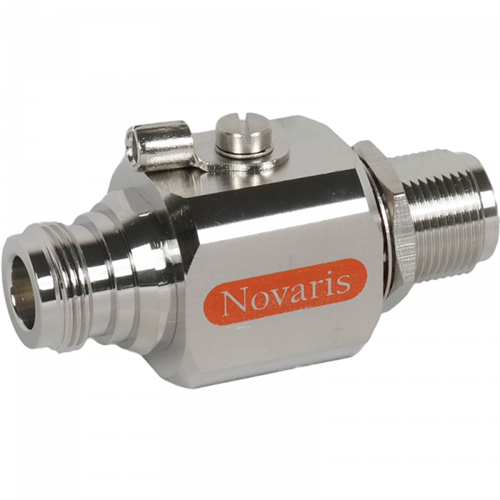

Novaris CB-MF-230-3 Coaxial Surge Protector 20kA 50kA 230VDC 3GHz Brass Nickel Plated IP55

Product Code: CB-MF-230-3

1

Specifications

Product Type	Coaxial Surge Protector
Brand	NOVARIS
Degree of Protection	IP55
Depth	58 mm
Height	25 mm
Humidity	5-95%
Material	Brass, Nickel Plated
Modes of Protection	Signal-Earth
Operational Temperature	-40 to 85 deg C
Rated Current	20 kA, 50 kA
Rated Frequency	3 GHz
Rated Power	40-125 W
Rated Voltage	230 VDC
Resistance	50 Ohm
Standards and Approvals	IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEE C62.41
Voltage Protection Level	<820 V
Weight	150 g
Width	25 mm

Documents

IPD Product Catalogue V17

Installation
