Specifications

Product Type	RF Equipment Protection up to 3GHz
Brand	Novaris
Series	CD
Application	Signal, RF Protection
Connection Type	7/16" DIN
Max. Working Frequency	3 GHz
Power Rating	350 W
Sparkover Voltage	350 V DC
Modes of Protection	Signal-Earth
Rated Current	20 kA, 50 kA
Rated Frequency	3 GHz
Rated Power	125-300 W
Rated Voltage	350 VDC
Line Resistance	50 Ohm
Voltage Protection Level Up	1.1 kV
Max. Discharge Current Imax (8/20µs)	20 kA
Connection Orientation	F/F
Material	Brass, Nickel Plated
Mounting Method	Bulkhead
Depth	80 mm
Height	40 mm
Weight	150 g
Width	40 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP67
Standards and Approvals	IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEE C62.41

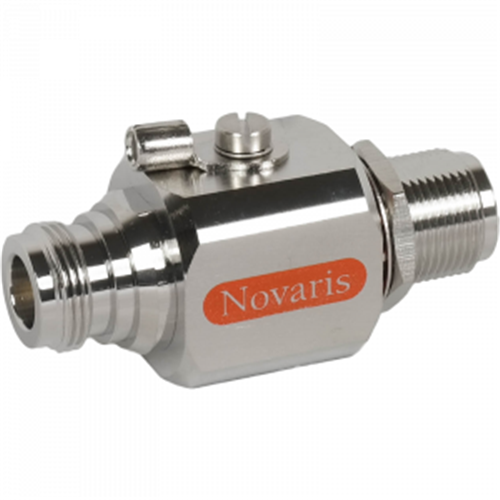

Novaris CD-FF-350-3 DIN RF Protector 20kA 50kA 350VDC 3GHz D-Type Female 40mm W 72mm D 40mm H Brass Nickel Plated IP55
