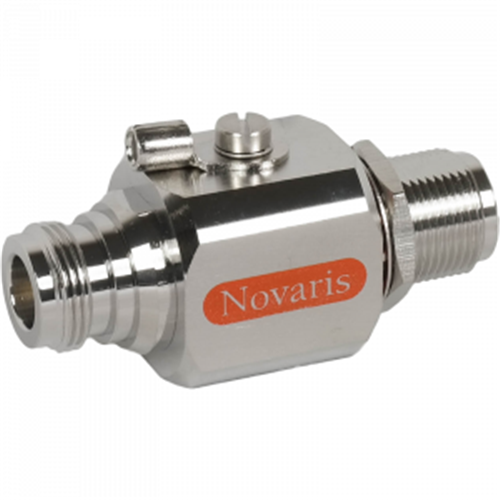

Novaris CD-MF-90-3 DIN RF Protector 20kA 50kA 90VDC 3GHz D-Type Female Male 40mm H IP55

Product Code: CD-MF-90-3

1

Specifications

Product Type	DIN RF Protector
Brand	NOVARIS
Connection Type	D-Type
Modes of Protection	Signal-Earth
Rated Current	20 kA, 50 kA
Rated Frequency	3 GHz
Rated Power	0-40 W
Rated Voltage	90 VDC
Line Resistance	50 Ohm
Voltage Protection Level Up	<0.65 kV
Connection Orientation	Female, Male
Material	Brass, Nickel Plated
Depth	72 mm
Height	40 mm
Weight	150 g
Width	40 mm
Humidity	5-95%
Operating Temperature	-40 to 85 deg C
IP Rating	IP55
Standards and Approvals	IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEE C62.41
