Specifications

Product Type	RF Equipment Protection up to 3GHz
Brand	Novaris
Series	CN-3
Application	Signal, RF Protection
Connection Type	N-Type
Max. Working Frequency	3 GHz
Power Rating	2500 W
Sparkover Voltage	1000 V DC
Modes of Protection	Signal-Earth
Rated Current	20 kA, 50 kA
Rated Frequency	3 GHz
Rated Power	800-2000 W
Rated Voltage	1000 VDC
Line Resistance	50 Ohm
Voltage Protection Level Up	1.8 kV
Max. Discharge Current Imax (8/20µs)	20 kA
Colour	Nickel Plated
Connection Orientation	M/F
Material	Brass
Mounting Method	Bulkhead
Depth	60 mm
Height	25 mm
Weight	150 g
Width	25 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP67
Standards and Approvals	IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEEE C62.41

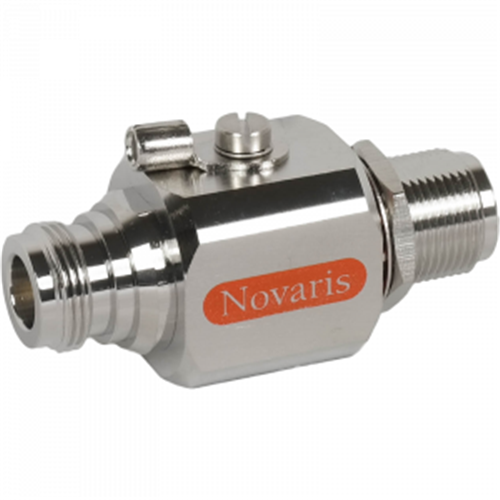

Novaris CN-MF-1000-3 Surge Protector 20kA 50kA 1000VDC 3GHz Brass Nickel Plated IP55
