Specifications

Product Type	RF Equipment Protection up to 3GHz
Brand	Novaris
Series	CT
Application	Signal, RF Protection
Connection Type	TNC
Max. Working Frequency	3 GHz
Power Rating	150 W
Sparkover Voltage	230 V DC
Modes of Protection	Signal-Earth
Rated Current	20 kA
Rated Frequency	3 GHz
Rated Power	40-125 W
Rated Voltage	230 VDC
Line Resistance	50 Ohm
Voltage Protection Level Up	820 V
Max. Discharge Current Imax (8/20µs)	20 kA
Connection Orientation	F/F
Material	Brass, Nickel Plated
Mounting Method	Bulkhead
Depth	52 mm
Height	25 mm
Weight	150 g
Width	25 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP67
Standards and Approvals	ITU-T K.44, AS/NZS 1768, IEEE C62.41, IEC 61643-21, UL497B

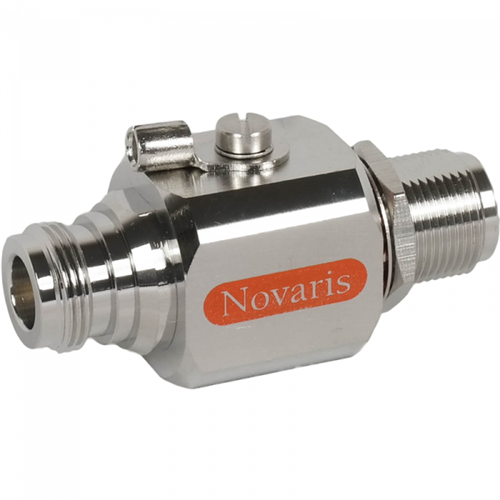

Novaris CT-FF-230-3 RF Equipment Protection 20kA 230VDC 3GHz 25mm W 54mm D 25mm H Brass Nickel Plated IP55
