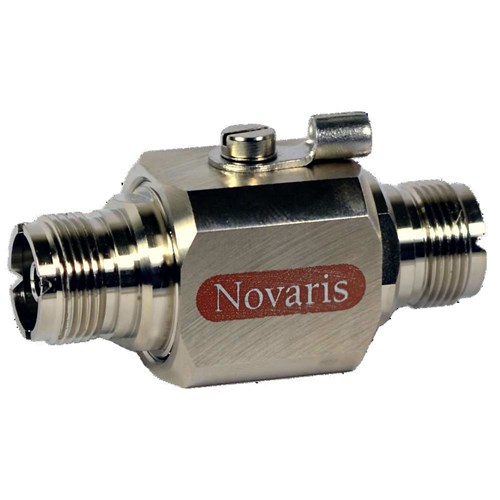

Novaris CU-FF-230-3 UHF RF Protector 20kA 50kA 230VDC 3GHz U-Type Female 25mm W 57mm D 25mm H Brass Nickel Plated IP55

Product Code: CU-FF-230-3

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type UHF RF Protector
Brand NOVARIS
Capacitance <1 pF
Connection Type U-Type
Connector Orientation Female
Degree of Protection IP55
Depth 57 mm
Height 25 mm
Humidity 5-95%
Material Brass, Nickel Plated
Modes of Protection Signal-Earth
Operational Temperature -40 to 85 deg C
Rated Current 20 kA, 50 kA
Rated Frequency 3 GHz
Rated Power 40-125 W
Rated Voltage 230 VDC
Resistance 50 Ohm
Standards and Approvals IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEE C62.41
Voltage Protection Level <0.82 kV
Weight 150 g
Width 25 mm

Documents

IPD Product Catalogue V17
Installation
NOVARIS Catalogue

CAD Blocks & Dimensions
