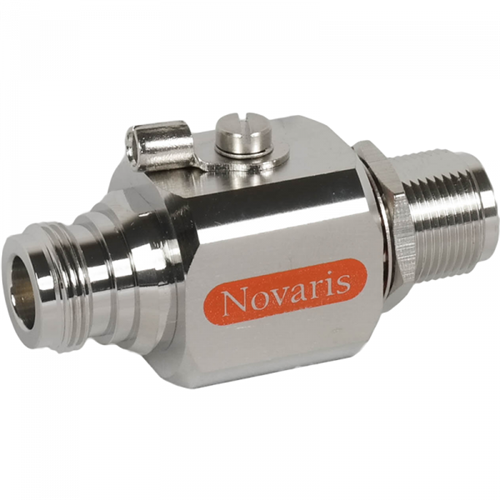

Novaris CU-MF-350-3 UHF RF Protector 20kA 50kA 350VDC 3GHz U-Type Female Male 25mm H IP55

Product Code: CU-MF-350-3

1

Specifications

Product Type	UHF RF Protector
Brand	NOVARIS
Capacitance	<1 pF
Connection Type	U-Type
Connector Orientation	Female, Male
Degree of Protection	IP55
Depth	57 mm
Height	25 mm
Humidity	5-95%
Material	Brass, Nickel Plated
Modes of Protection	Signal-Earth
Operational Temperature	-40 to 85 deg C
Rated Current	20 kA, 50 kA
Rated Frequency	3 GHz
Rated Power	125-300 W
Rated Voltage	350 VDC
Resistance	50 Ohm
Standards and Approvals	IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEE C62.41
Voltage Protection Level	<1.1 kV
Weight	150 g
Width	25 mm

Documents

IPD Product Catalogue V17

Installation

NOVARIS Catalogue
