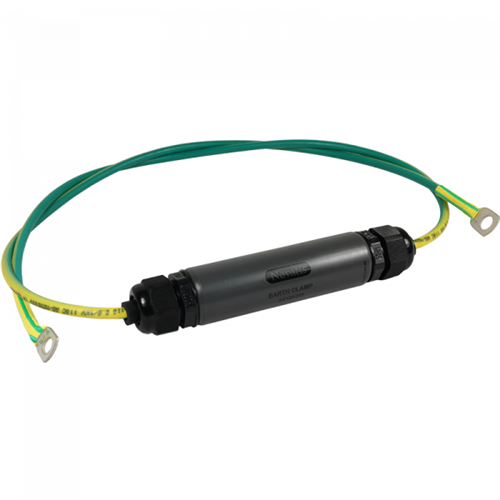

Novaris EC20-90 Earth Clamp 20kA 90VDC 6sq-mm Flying Leads 20mm W 60mm H IP65

Product Code: EC20-90

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Earth Clamp
Brand NOVARIS
Capacitance <0.8 pF
Connection Type 6 sq-mm Flying Leads
Degree of Protection IP65
Height 60 mm
Humidity 5-95%
Operational Temperature -40 to 70 deg C
Rated Current 20 kA
Rated Voltage 90 VDC
Voltage Protection Level <0.64 kV
Weight 160 g
Width 20 mm
