Specifications

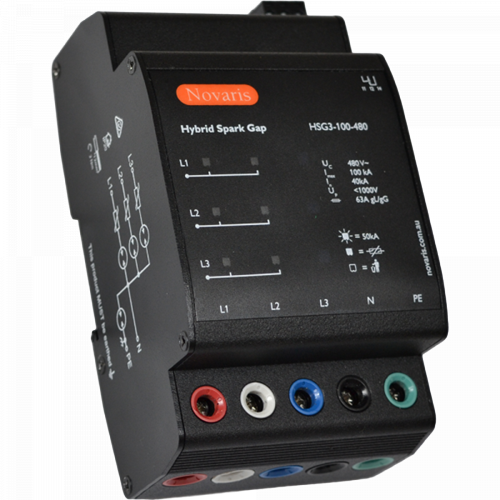

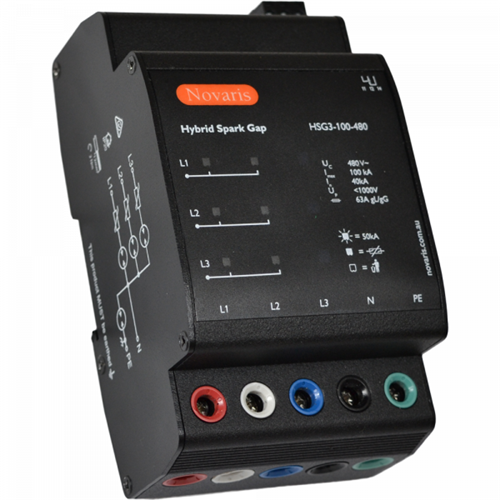

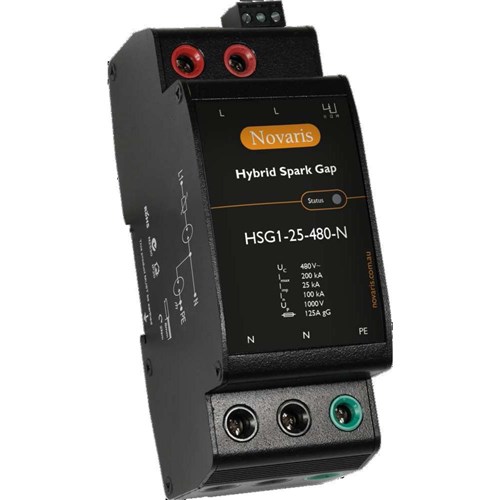

Product Type	Hybrid Spark Gap Arrester
Brand	NOVARIS
Connection Type	Shunt
Contact Configuration	SPDT
Degree of Protection	IP20
Depth	70 mm
Display Type	LED
Fuse Rating	125 A
Height	200 mm
Humidity	5-95%
Lightning Impulse Current	25 kA
Material	Metal
Modes of Protection	L-N, N-PE
Mounting Type	Panel, TS35 DIN
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	250 kA
Rated Frequency	50 Hz
Rated Voltage	230 V
Response Time	<100 ns
Standards and Approvals	EC 61643-11 Class I, AS/NZS 1768 Category C, IEEE C62.41 Category C, IEC 1000-4-5, UL1449 Fourth Edition
Weight	1.2 kg
Width	60 mm
