Specifications

Product Type	Isolated Surge Diverter
Brand	NOVARIS
Connection Type	Shunt
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	32 A
Height	70 mm
Humidity	5-95%
Material	Aluminium
Modes of Protection	L-L, L-PE
Mounting Type	TS35 DIN Rail
Number of Poles	2
Number of Ports	1
Operational Temperature	-40 to 70 deg C
Rated Current	40 kA
Rated Short Circuit Current	40 kA
Rated Voltage	230 VAC/VDC
Response Time	<5 ns (L-L), <5 ns (L-PE)
Standards and Approvals	IEC 61643-11, IEC 61643-21, EEE C62.41
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<800 V
Weight	230 g
Width	36 mm

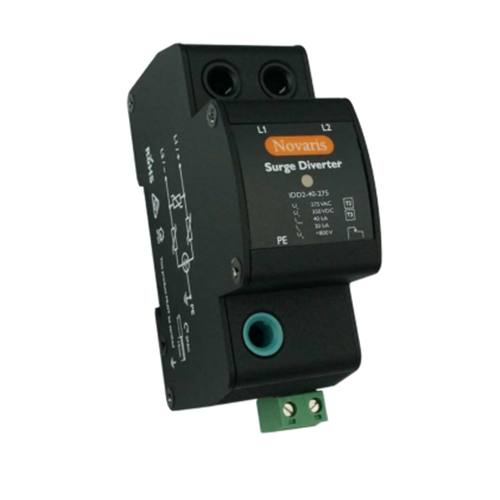

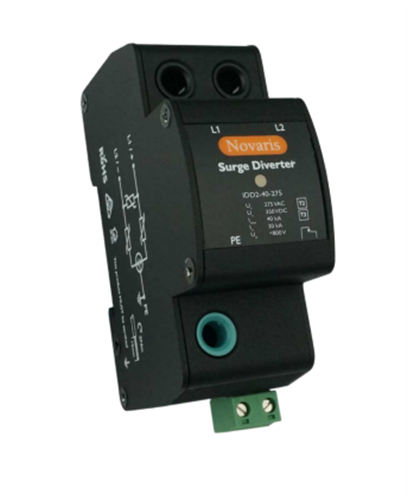

Novaris IDD2-40-275 Isolated Surge Diverter 2-P 40kA 230VAC/DC Shunt TS35 Aluminium IP20
