Specifications

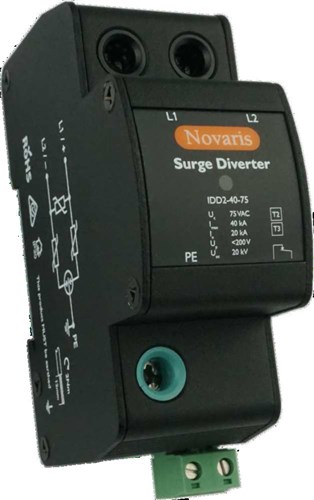

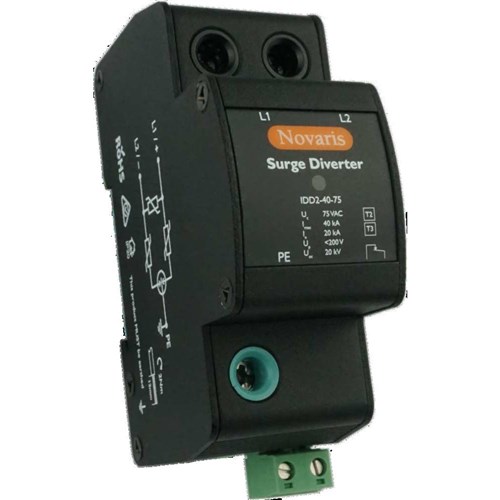

Product Type	Isolated Surge Diverter
Brand	NOVARIS
Connection Type	Shunt
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Power and Thermal Failure
Enclosure Coating Material	Black powdercoat
Fuse Rating	32 A
Height	70 mm
Humidity	5-95%
Material	Aluminium
Modes of Protection	L-L, L-PE
Mounting Type	TS35 DIN Rail
Number of Poles	2
Number of Ports	1
Operational Temperature	-40 to 70 deg C
Rated Current	40 kA (L-L), 20 kA (L-PE)
Rated Voltage	70 VAC/VDC
Response Time	<5 ns (L-L), <5 ns (L-PE)
Standards and Approvals	IEC 61643-11, IEC 61643-21, EEE C62.41
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<200 V
Weight	220 g
Width	36 mm
