Specifications

Product Type	Delta Connected Surge Diverter
Brand	Novaris
Series	IDD3
Application	Power, Distribution Boards and Domestic MSB, Control Cabinets and Final Sub Boards
Connection Type	Shunt
Lightning Impulse Current Iimp (10/350µs)	8 kA
Max. Backup Fuse	63 A
Max. Continuous Operating Voltage (AC/DC)	300 V AC, 420 V DC
No. of Phases	3
Communication Ports	1
Modes of Protection	L-L, L-PE
Rated Current	100 kA (L-PE)
Rated Short Circuit Current	25 kA
Rated Voltage	220 VAC
Nominal Voltage	220 V AC
Voltage Protection Level Up	1300 V
Max. Discharge Current Imax (8/20µs)	100 kA
Short Circuit Current Rating	50 kA
Nominal Discharge Current Inom (8/20µs)	40 kA
Display	LED Power and Thermal Failure
Material	Aluminium
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	16 mm2
Tightening Torque	2 N-m
Depth	95 mm
Height	70 mm
Weight	500 g
Width	72 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, IEEE 62.41.2:2002, UL 1449 3rd Edition

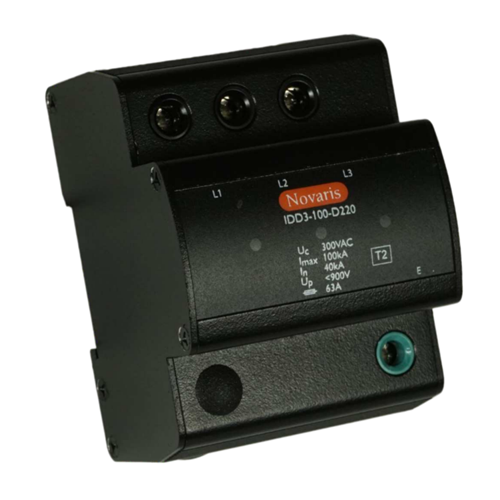

Novaris IDD3-100-D220 Surge Protection 8kA 3 PH 100kA 220VAC TS35 IP20
