Specifications

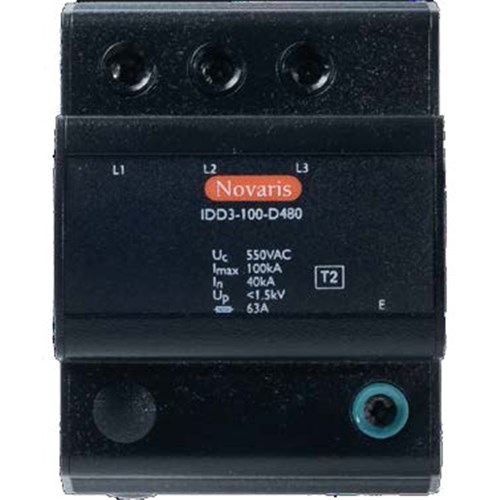

Product Type	Delta Connected Surge Diverter
Brand	Novaris
Series	IDD3
Application	Power, Distribution Boards and Domestic MSB, Commercial and Industrial
Connection Type	Shunt
Lightning Impulse Current Iimp (10/350µs)	12.5 kA
Max. Backup Fuse	63 A
Max. Continuous Operating Voltage (AC/DC)	480 V AC, 670 V DC
No. of Phases	3
Communication Ports	1
Modes of Protection	L-L, L-PE
Rated Current	100 kA (L-PE)
Rated Short Circuit Current	50 kA
Rated Voltage	400 VAC
Nominal Voltage	400 V AC
Response Time	<5 ns (L-PE)
Voltage Protection Level Up	1500 V
Max. Discharge Current Imax (8/20µs)	100 kA
Short Circuit Current Rating	50 kA
Nominal Discharge Current Inom (8/20µs)	40 kA
Display	LED Power and Thermal Failure
Enclosure Material	Black powdercoat
Material	Aluminium
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	16 mm2
Tightening Torque	2 N-m
Depth	95 mm
Height	70 mm
Weight	550 g
Width	72 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, IEEE 62.41.2:2002, UL 1449 3rd Edition
