Specifications

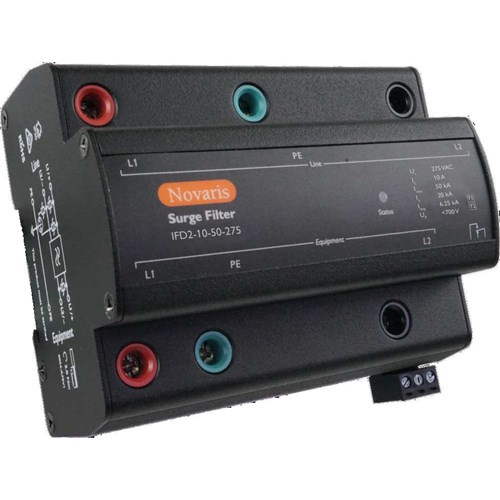

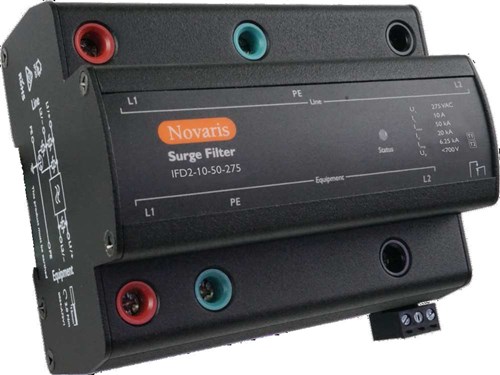

Product Type	Two Phase DIN Mount Surge Filter
Brand	Novaris
Series	IFD2
Application	Power, Control Cabinets and Final Sub Boards
Lightning Impulse Current Iimp (10/350µs)	6.25 kA
Max. Backup Fuse	10 A
Max. Continuous Operating Voltage (AC/DC)	275 V AC, 350 V DC
Max. Load Current	10 A
No. of Phases	2
Communication Ports	2
Contact Configuration	SPDT
Modes of Protection	L-L, L-PE
Rated Current	10 A
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Response Time	<100 ns
Voltage Protection Level Up	1000 V
Max. Discharge Current Imax (8/20µs)	50 kA
Alarm Contact	SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)	20 kA
Display	LED Power and Thermal Failure
Enclosure Material	Black powdercoat
Material	Aluminium
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	16 mm2
Tightening Torque	0.5 N-m, 2 N-m
Depth	95 mm
Height	69 mm
Weight	950 g
Width	119 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
