Specifications

Product Type	Surge Filter
Brand	NOVARIS
Series	IFD
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	20 A
Height	69 mm
Humidity	5-95%
Material	Aluminium
Modes of Protection	L-L, L-PE
Mounting Type	TS35 DIN Rail
Number of Ports	2
Operational Temperature	-40 to 70 deg C
Phase	2
Rated Current	8 kA (L-L), 12 kA (L-PE)
Rated Voltage	24 VAC
Response Time	<5 ns (L-L), <5 ns (L-PE)
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<180V (L-L), <280V (L-PE)
Weight	950 g
Width	118 mm

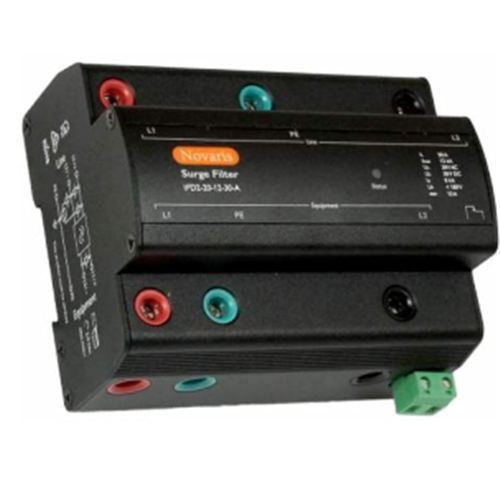

Novaris IFD2-20-12-30 Surge Filter 2 PH 8kA 12kA 24VAC TS35 Aluminium IP20
