Specifications

Product Type	Surge Filter
Brand	NOVARIS
Connection Type	Series
Contact Configuration	SPDT
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	32 A
Height	69 mm
Humidity	5-95%
Lightning Impulse Current	12.5 kA
Material	Aluminium
Modes of Protection	L-L, L-PE
Mounting Type	TS35 DIN Rail
Number of Ports	2
Operational Temperature	-40 to 70 deg C
Phase	2
Rated Current	32 A
Rated Voltage	230 VAC
Response Time	<100 ns
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<700 V
Weight	950 g
Width	119 mm

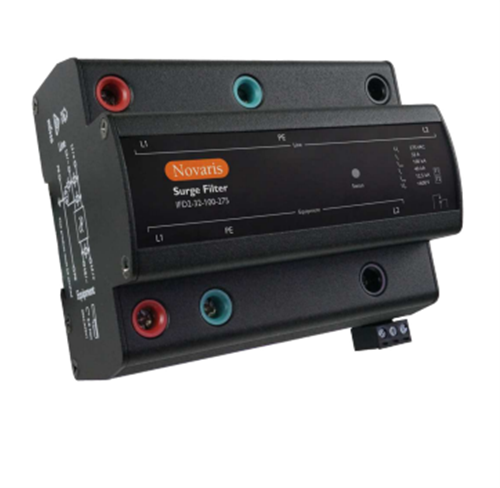

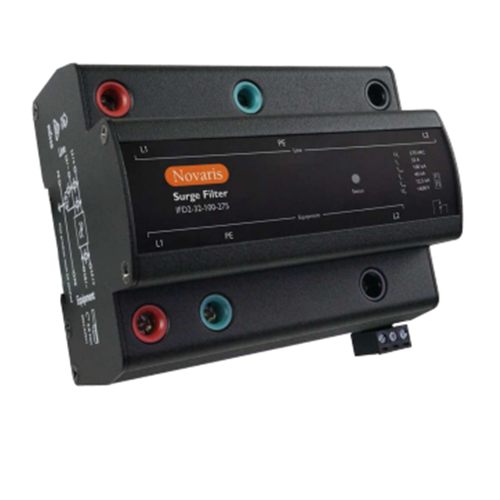

Novaris IFD2-32-100-275 Surge Filter 12.5kA 2 PH 32A 230VAC TS35 Aluminium IP20
