Specifications

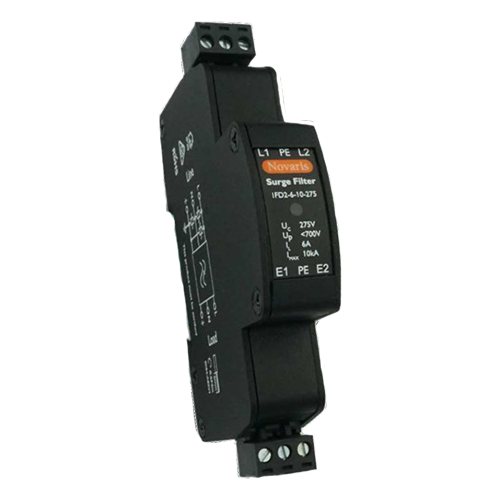

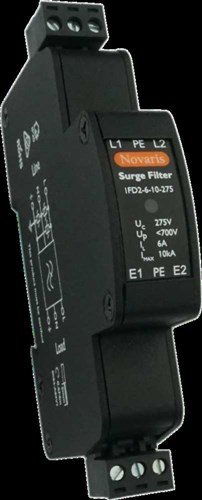

Product Type	Two Phase DIN Mount Surge Filter
Brand	Novaris
Series	IFD2
Application	Power, Control Cabinets and Final Sub Boards
Max. Backup Fuse	6 A
Max. Continuous Operating Voltage (AC/DC)	275 V AC, 350 V DC
Max. Load Current	6 A
No. of Phases	2
Communication Ports	2
Modes of Protection	(+)-(-), (+)-PE, (-)-PE
Rated Current	6 A
Rated Short Circuit Current	10 kA
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Voltage Protection Level Up	700 V
Max. Discharge Current Imax (8/20µs)	10 kA
Nominal Discharge Current Inom (8/20µs)	6 kA
Display	LED Power and Thermal Failure
Material	Aluminium
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	2.5 mm2
Tightening Torque	0.5 N-m
Depth	115 mm
Height	69 mm
Weight	350 g
Width	18 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
