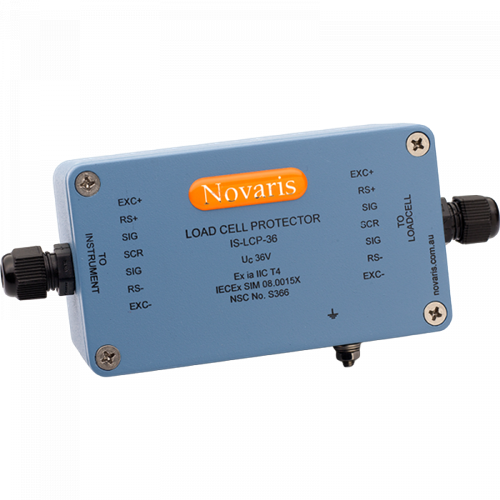

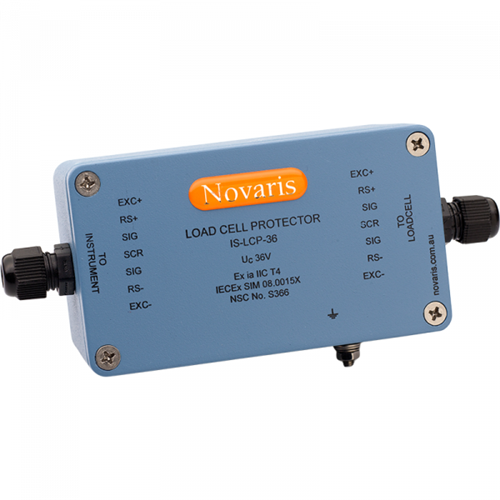

Novaris IS-LCP-36 Load Cell Protector 0.25kA 36VDC 116mm W 56mm D 65mm H Aluminium IP65

Product Code: IS-LCP-36

  • Surge protection for 36 VDC systems
  • Durable IP65 aluminium housing
  • Operates in -40 to 85°C range
  • Protects in transverse & common modes
  • Compact size: 116x65x56 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Load Cell Protector
Brand NOVARIS
Degree of Protection IP65
Depth 56 mm
Height 65 mm
Humidity 5-95%
Material Aluminium
Modes of Protection Transverse and Common Modes
Number of Lines 4, 6
Operational Temperature -40 to 85 deg C
Rated Current 0.25 kA
Rated Voltage 36 VDC
Tightening Torque 0.5 N-m
Voltage Protection Level <70 V
Weight 600 g
Width 116 mm

Description

<p>When it comes to safeguarding your electrical systems, choosing the right surge protector is crucial. This robust Surge Protector is designed to offer reliable protection for industrial and commercial applications in Australia. Built with precision, it ensures that your equipment remains shielded from unexpected voltage spikes.</p><p>Operating efficiently at a rated voltage of 36 VDC and a rated current of 0.25 kA, this device provides solid performance under demanding conditions. The unit&amp;#39;s IP65 degree of protection signifies its resilience against dust ingress and water jets, making it suitable for harsh environments.</p><p>The compact dimensions—116 mm in width, 65 mm in height, and 56 mm in depth—allow for easy integration into various setups without taking up excessive space. Despite its sturdy construction from aluminium material, the surge protector maintains a manageable weight of just 600 g.</p><p>One of the standout features is its operational temperature range from -40 to 85 degrees Celsius, ensuring reliability across extreme Australian climates. Whether it&amp;#39;s sweltering heat or biting cold, this surge protector stands ready to perform consistently.</p><p>Humidity tolerance ranging from 5% to 95% further enhances its adaptability to diverse environmental conditions. The tightening torque specification of 0.5 N-m ensures secure installation and stable operation over time.</p><p>This surge protector offers a voltage protection level below 70 V while providing both transverse and common modes of protection. Such dual-mode functionality ensures comprehensive defense against power surges that could otherwise compromise sensitive equipment.</p><p>Designed with versatility in mind, the product accommodates either four or six lines depending on your specific application needs. This flexibility makes it an ideal choice for complex installations where multiple lines require simultaneous protection.</p><p>In summary, this Surge Protector combines durability with advanced protective features tailored for industrial use cases within Australia’s unique climate challenges. Its thoughtful design not only meets technical requirements but also supports seamless integration into existing systems without fuss.</p>
