Specifications

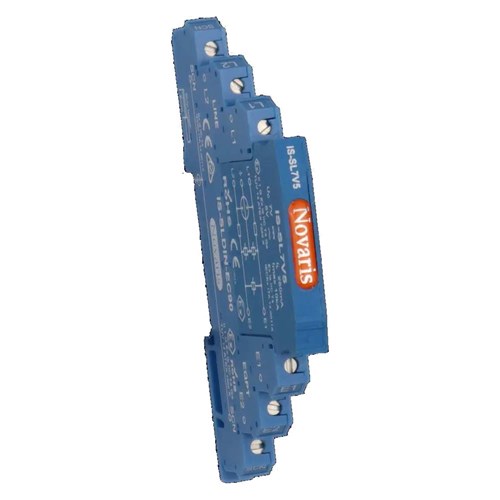

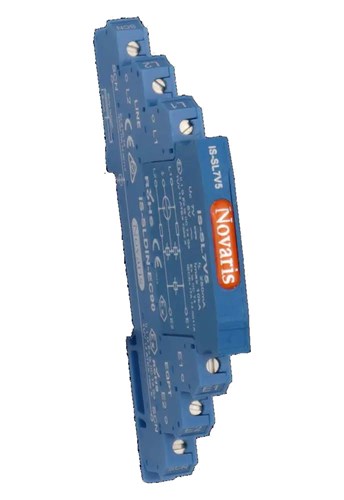

Product Type	Signal Surge Protector With Base
Brand	NOVARIS
Base Type	EC90 Indirect Earthing
Capacitance	40 nF
Connection Type	Series
Degree of Protection	IP20
Depth	102 mm
Enclosure Coating Material	Blue
Height	68 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-20 to 40 deg C
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Power	1.3 W
Rated Short Circuit Current	250 mA
Rated Voltage	7 VDC
Resistance	8.2 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 60079-0, IEC 60079-11, IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd Edition and UL 497B, ITU-T K.44: 2012
Terminal Type	Screw cage
Tightening Torque	0.5 N-m
Voltage Protection Level	25 V
Weight	35 g
Width	7 mm
