Specifications

Product Type	Threaded Signal Surge Protector
Brand	NOVARIS
Connection Type	Shunt
No. of Lines/Pairs	4
Modes of Protection	Transverse and Common Modes
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Power	2.2 W
Rated Voltage	8 VDC
Response Time	<5 ns
Voltage Protection Level Up	45 V
Material	Stainless Steel
Mounting Type	M20 x 1.5 Thread
Height	27 mm
Length	53 mm
Weight	180 g
Width	24 mm
Humidity	5-95%
Operating Temperature	-20 to 40 deg C
IP Rating	IP67
Standards and Approvals	IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd Edition and UL 497B, ITU-T K.44: 2012

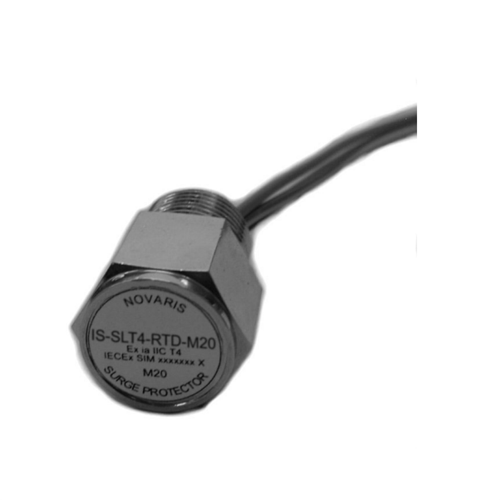

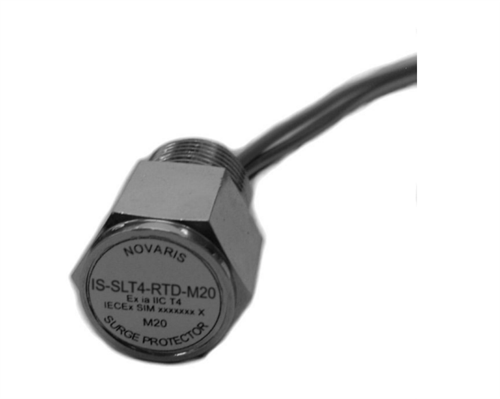

Novaris IS-SLT4-RTD-M20 Threaded Signal Surge Protector 5kA 10kA 8VDC Shunt M20x1.5 Thread SS IP67
