Specifications

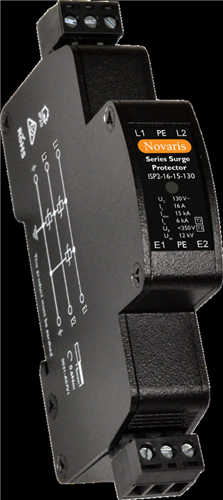

Product Type	ISP Isolated Series Protector
Brand	NOVARIS
Series	ISP
Degree of Protection	IP20
Depth	115 mm
Display Type	LED Status
Fuse Rating	16 A
Height	69 mm
Humidity	5-95%
Material	Aluminium
Modes of Protection	L1-L2, L1-PE, L2-PE
Mounting Type	TS35 DIN Rail
Number of Ports	2
Operational Temperature	-40 to 70 deg C
Phase	2
Rated Current	16 A
Rated Short Circuit Current	10 kA
Rated Voltage	110 VAC
Response Time	<5 ns (L-L), <5 ns (L-PE)
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Tightening Torque	0.5 N-m
Voltage Protection Level	<350 V
Weight	150 g
Width	18 mm
