Specifications

Product Type	ISP2 Series Surge Protectors
Brand	Novaris
Series	ISP2
Application	Power, Control Cabinets and Final Sub Boards
Connection Type	Series
Max. Backup Fuse	16 A
Max. Continuous Operating Voltage (AC/DC)	275 V AC, 380 V DC
Max. Load Current	16 A
No. of Phases	2
No. of Phases/Lines	2
Communication Ports	2
Modes of Protection	L1-L2, L1-PE, L2-PE
Rated Current	16 A
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Response Time	<5 ns (L-L), <5 ns (L-PE)
Voltage Protection Level Up	<800 V
Max. Discharge Current Imax (8/20µs)	15 kA
Short Circuit Current Rating	10 kA
Nominal Discharge Current Inom (8/20µs)	6 kA
Display	LED Status
Material	Aluminium
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	2.5 mm2
Tightening Torque	0.5 N-m
Depth	115 mm
Height	69 mm
Weight	120 g
Width	18 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2

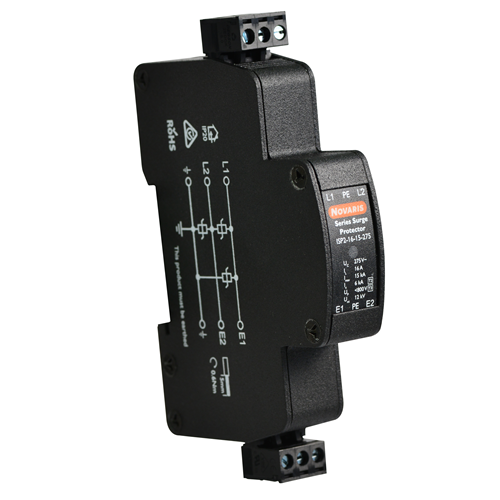

Novaris ISP2-16-15-275 ISP Isolated Series Protector 2-P 2 PH 16A 230VAC TS35 18mm W 115mm D 69mm H Aluminium IP20
