Specifications

Product Type	Telephone Protector
Brand	NOVARIS
Connection Type	KRONE LSA-PLUS
Modes of Protection	Transverse and Common Modes
Rated Current	10 kA
Rated Voltage	8 VDC
Line Resistance	2.7 Ohm
Response Time	<5 ns
Material	ABS, Black EDM
Mounting Type	KRONE LSA-PLUS
Depth	9.5 mm
Height	53.3 mm
Weight	6.5 g
Width	21 mm
Humidity	5-95%
Operating Temperature	-40 to 85 deg C
IP Rating	IP20
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd edition and UL 497B, ITU-T K.44: 2012, AS/CA S008:2010, AS/NZS 4117:1999

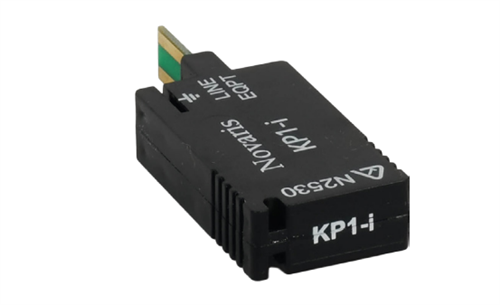

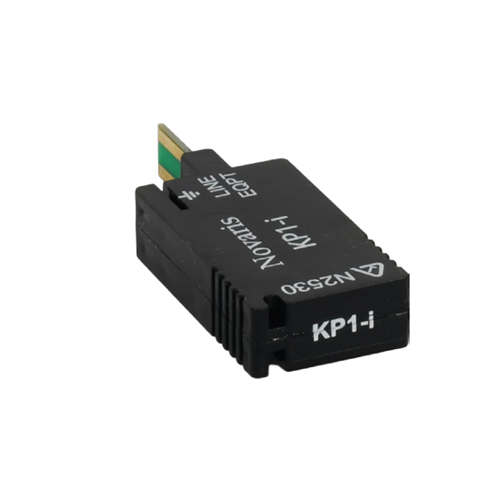

Novaris KP1-06 Telephone Protector 10kA 8VDC KRONE LSA-PLUS 21mm W 9.5mm D 53.3mm H ABS Black EDM IP20
