Specifications

Product Type	Krone Protector
Brand	Novaris
Series	KP KRONE-LSA
Application	Signal, Network and CCTV
Connection Type	KRONE LSA-PLUS
No. of Lines/Pairs	1 pair
Modes of Protection	Transverse and Common Modes
Rated Current	10 kA
Rated Voltage	15 VDC
Line Resistance	2.7 Ohm
Response Time	<5 ns
Voltage Protection Level Up	17 V
Max. Discharge Current Imax (8/20µs)	5 kA
Max. Continuous Operating Voltage (DC)	15 V
Max. Continuous Operating Voltage (AC)	11 V
Material	ABS, Black EDM
Mounting Method	Krone LSA-Plus
Mounting Type	KRONE LSA-PLUS
Depth	21 mm
Height	54 mm
Weight	6.5 g
Width	10 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd edition and UL 497B, ITU-T K.44: 2012, AS/CA S008:2010, AS/NZS 4117:1999

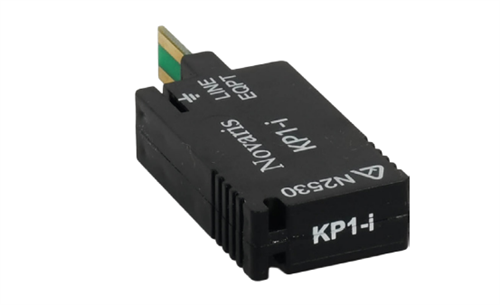

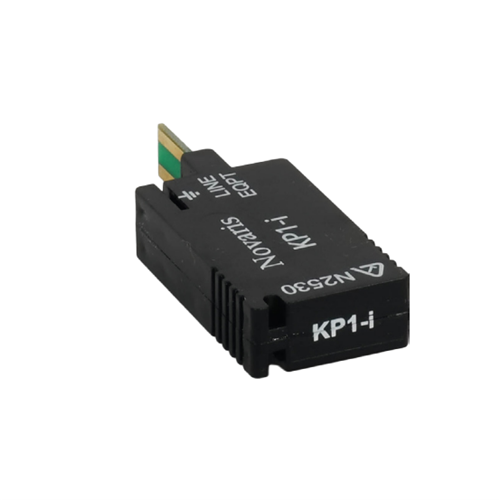

Novaris KP1-12 Telephone Protector 10kA 15VDC KRONE LSA-PLUS 21mm W 9.5mm D 53.3mm H ABS Black EDM IP20
