Specifications

Product Type	Krone Protector
Brand	Novaris
Series	KP KRONE-LSA
Application	Signal, Network and CCTV
Connection Type	Series
No. of Lines/Pairs	10 pair
Modes of Protection	Transverse and Common Modes
Rated Current	10 kA
Rated Voltage	200 VDC
Voltage Protection Level Up	220 V
Max. Discharge Current Imax (8/20µs)	5 kA
Max. Continuous Operating Voltage (DC)	200 V
Max. Continuous Operating Voltage (AC)	140 V
Mounting Method	Krone LSA-Plus
Mounting Type	KRONE LSA-PLUS
Depth	126 mm
Height	54 mm
Weight	150 g
Width	18 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20

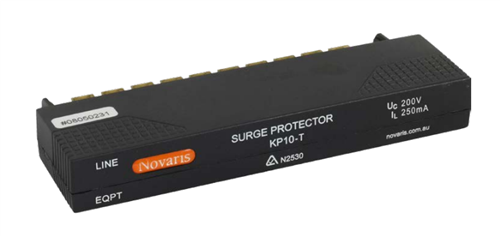

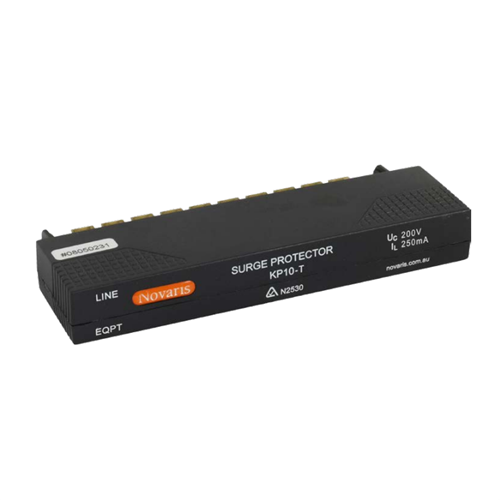

Novaris KP10-T Surge Protection 10kA 200VDC KRONE LSA-PLUS Mount
