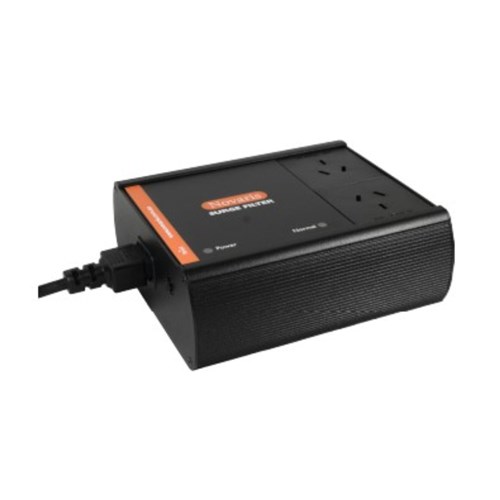

Novaris PP10A2-50 Plug-In Surge Filter 1 PH 50kA 275VAC 2 Outlet Free Standing Mount IP20

Product Code: PP10A2-50

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Plug-In Surge Filter
Brand NOVARIS
Series PP10
Connection Type Series
Degree of Protection IP20
Depth 60 mm
Height 140 mm
Humidity 0-90%
Modes of Protection L-N, L-PE, N-PE
Mounting Type Free Standing
Number of Outlets 2
Operational Temperature -40 to 70 deg C
Phase 1
Rated Current 50 kA
Rated Voltage 275 VAC (L-N, N-PE, L-PE)
Standards and Approvals IEC 61643-11, AS/NZS 1768, IEEE C62.41, IEC 1000-4-5
Voltage Protection Level <0.6 kV
Weight 1.3 kg
Width 155 mm
