Specifications

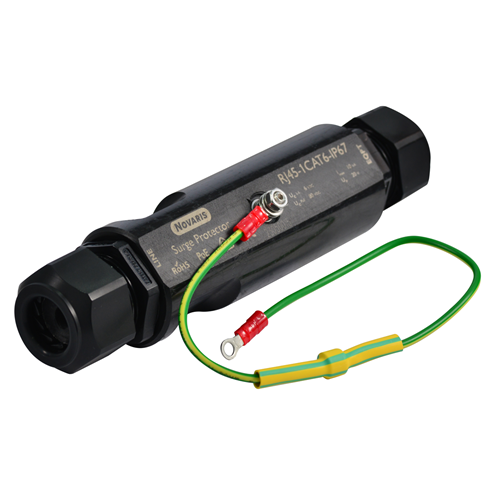

Product Type	IP67 Rated Local Area Network Protector
Brand	Novaris
Series	RJ45 IP67
Application	Signal, Network and CCTV
Connection Type	RJ45 Socket
Lightning Impulse Current Iimp (10/350µs)	1 kA
No. of Lines/Pairs	4 pair & shield
Modes of Protection	Transverse and Common Modes
Rated Current	5 kA
Rated Voltage	4 VAC
Response Time	<5 ns
Voltage Protection Level Up	20 V
Max. Discharge Current Imax (8/20µs)	5 kA
Max. Continuous Operating Voltage (DC)	6 V
Max. Continuous Operating Voltage (AC)	4 V
Material	Nylon
Mounting Method	Outdoor, see installation manual for details
Mounting Type	TS35 DIN Rail
Depth	178 mm
Height	46 mm
Length	178 mm
Weight	180 g
Width	40 mm
Humidity	5-95%
Operating Temperature	-40°C to 85°C
IP Rating	IP67
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007
