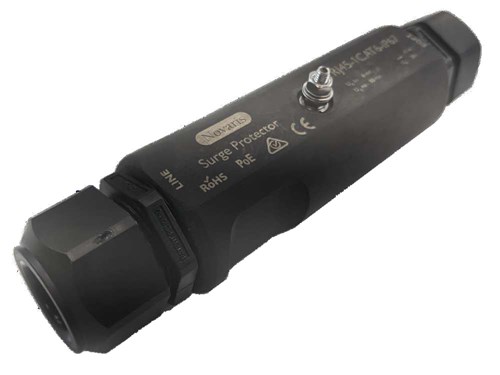

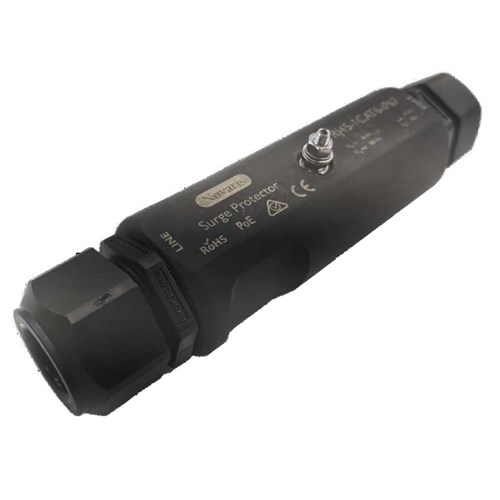

Specifications

Product Type	Network Protector
Brand	NOVARIS
Series	RJ45-Cat6
Connection Type	RJ45 Socket
Suitable for	UTP CA
Communication Ports	1
Modes of Protection	Transverse and Common Modes
Rated Current	5 kA
Rated Voltage	4 VAC
Response Time	<5 ns
Material	Nylon
Height	46 mm
Length	178 mm
Weight	172 g
Width	40 mm
Humidity	5-95%
Operating Temperature	-40 to 85 deg C
IP Rating	IP67
Standards and Approvals	IEC 61643-21, AS/NZS 1768, ITU-T K.44, AS/CA S008, AS/NZS 4117, AS/CA S009
