Specifications

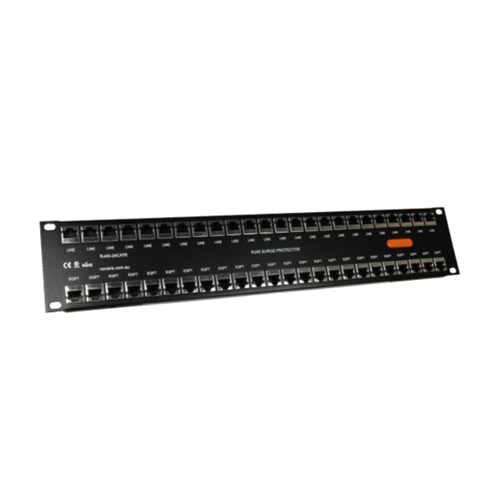

Product Type	Network Protector
Brand	NOVARIS
Connection Type	(24) RJ45
Lightning Impulse Current Iimp (10/350µs)	1 kA, 2 kA
No. of Lines/Pairs	4
Suitable for	Twisted Pair Cabling
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Voltage	4 VAC
Terminal Type	RJ45 Socket
Response Time	<5 ns
Voltage Protection Level Up	<0.02 kA (L-L), <0.35 kA (L-PE)
Material	Steel
Mounting Type	Rack
Height	88 mm
Length	483 mm
Weight	2 kg
Width	20 mm
Humidity	5-95%
Operating Temperature	-40 to 70 deg C
IP Rating	IP20
Standards and Approvals	IEC 61643-21, AS/NZS 1768, UL 497B, ITU-T K.44, AS/CA S008, AS/NZS 4117, AS/CA S009
