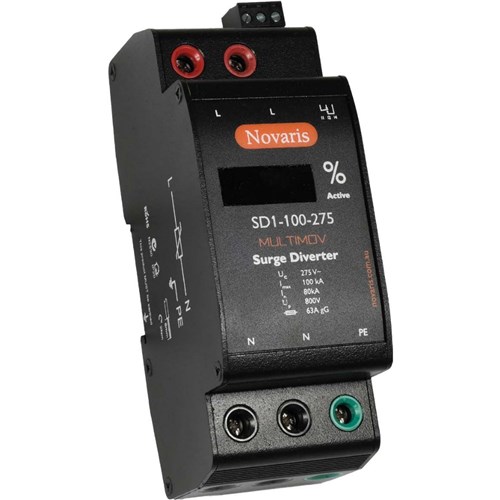

Novaris SD1-100-275-N Surge Diverter 12.5kA 15kA 1 PH 100kA 60kA 230VAC TS35 IP20

Product Code: SD1-100-275-N

1

Specifications

Product Type	Surge Diverter
Brand	NOVARIS
Series	SD1
Connection Type	Shunt
Contact Configuration	SPDT
Degree of Protection	IP20
Depth	141 mm
Display Type	Digital
Fuse Rating	63 A
Height	69 mm
Humidity	5-95%
Interrupt Rating	100 A
Lightning Impulse Current	12.5 kA, 15 kA
Material	Aluminium
Modes of Protection	L-N, N-PE
Mounting Type	TS35 DIN Rail
Number of Ports	1
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	100 kA (L-N), 60 kA (N-PE)
Rated Short Circuit Current	50 kA
Rated Voltage	230 VAC
Response Time	<25 ns (L-N), <100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<800V (L-N)
Weight	480 g
Width	54 mm
