Specifications

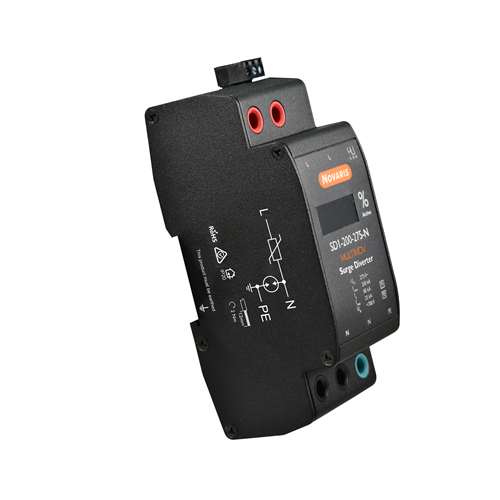

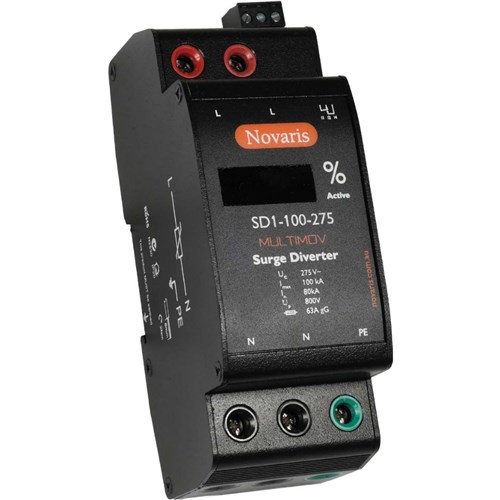

Product Type	MULTIMOV Surge Diverters
Brand	Novaris
Series	SD1
Application	Power, Main Switchboards, Commercial and Industrial
Connection Type	Shunt
Lightning Impulse Current Iimp (10/350µs)	25 kA
Max. Backup Fuse	100 A
Max. Continuous Operating Voltage (AC/DC)	275 V AC
No. of Phases	1
Breaking Capacity	100 A
Communication Ports	1
Contact Configuration	SPDT
Modes of Protection	L-N, N-PE
Rated Current	200 kA (L-N), 150 kA (N-PE)
Rated Short Circuit Current	50 kA
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Response Time	<25 ns (L-N), <100 ns (N-PE)
Voltage Protection Level Up	1500 V
Max. Discharge Current Imax (8/20µs)	200 kA
Short Circuit Current Rating	100 kA
Alarm Contact	SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)	80 kA
Display	Digital
Material	Aluminium
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	16 mm2
Tightening Torque	0.5 N-m, 2 N-m
Depth	141 mm
Height	69 mm
Weight	565 g
Width	54 mm
Humidity	5-95%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
