Specifications

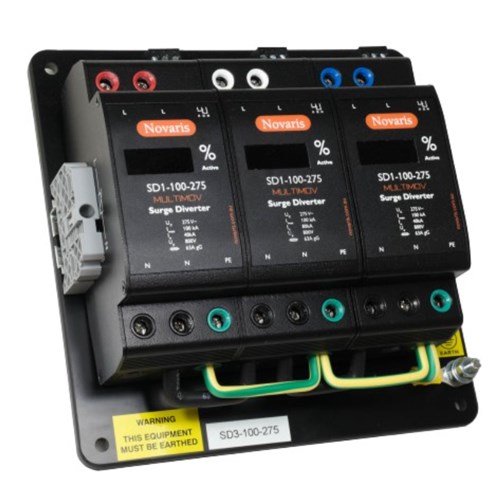

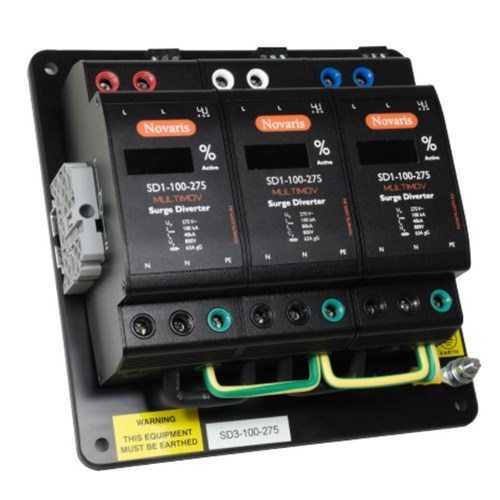

Product Type	Surge Diverter
Brand	Novaris
Series	SD3
Application	Industrial and commercial main switchboards
Lightning Impulse Current Iimp (10/350µs)	25kA (L-N)
Max. Backup Fuse	100A
Max. Continuous Operating Voltage (AC/DC)	275VAC
No. of Poles (Total)	3
Nominal Voltage	230V
Nominal Discharge Current (8/20µs)	80kA (L-N)
Voltage Protection Level Up	<700V
Maximum Discharge Current Imax (8/20µs)	200kA
Alarm Contact	SPDT
Mounting Method	Panel
Terminal Size	Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²
Depth	80 mm
Height	200 mm
Width	200 mm
Operating Temperature	-40°C - 70°C
IP Rating	IP20
