Specifications

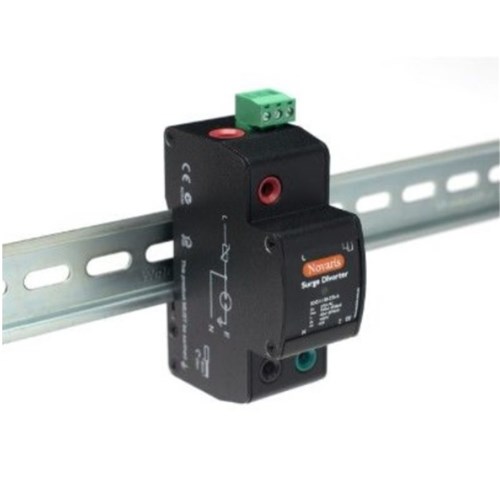

Product Type	DB Surge Diverter
Brand	NOVARIS
Series	SDD1
Connection Type	Shunt
Contact Configuration	SPDT
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	63 A
Height	70 mm
Humidity	5-95%
Lightning Impulse Current	12.5 kA, 50 kA
Material	Aluminium
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail
Number of Ports	1
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	100 kA (L-N), 60 kA (N-PE)
Rated Short Circuit Current	50 kA
Rated Voltage	230 VAC
Response Time	<25 ns (L-N), <100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, IEEE 62.41.2:2002, UL 1449 3rd Edition
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<0.8 kA (L-N), <1.2 kA (N-PE)
Weight	295 g
Width	36 mm
