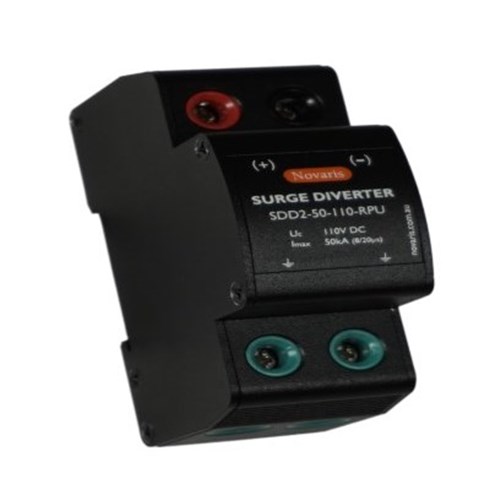

Novaris SDD2-50-110-RPU Surge Diverter 2-P 2 PH 40kA 20kA 130VAC IP20

Product Code: SDD2-50-110-RPU

1

Specifications

Product Type	Surge Diverter
Brand	NOVARIS
Series	SDD2
Connection Type	Shunt
Degree of Protection	IP20
Height	95 mm
Length	70 mm
Material	Aluminium
Mounting Type	DIN Rail
Number of Poles	2
Operational Temperature	-40 to 80 deg C
Phase	2
Rated Current	40 kA (L-L), 20 kA (L-PE)
Rated Voltage	130 VAC (L-L)
Voltage Protection Level	<0.37 kA (L-L), <0.44 kA (L-PE)
Width	36 mm

Documents

IPD Product Catalogue V17
