Specifications

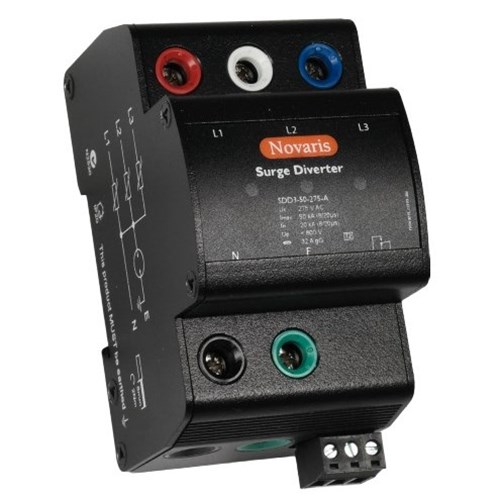

Product Type	SDD Surge Diverter
Brand	NOVARIS
Series	SDD3
Connection Type	Shunt
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	63 A
Height	70 mm
Humidity	5-95%
Lightning Impulse Current	12.5 kA, 50 kA
Material	Aluminium
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail
Number of Poles	3
Number of Ports	1
Phase	3
Rated Current	100 kA (L-N), 60 kA (N-PE)
Rated Short Circuit Current	50 kA
Rated Voltage	230 VAC
Response Time	<25 ns (L-N), <100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, IEEE 62.41.2:2002, UL 1449 3rd Edition
Tightening Torque	2 N-m
Voltage Protection Level	<0.8 kA (L-N), <1.2 kA (N-PE)
Weight	570 g
Width	72 mm
