Specifications

Product Type	Surge Diverter
Brand	NOVARIS
Series	SDD3
Connection Type	Shunt
Contact Configuration	SPDT
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	63 A
Height	70 mm
Humidity	5-95%
Interrupt Rating	100 A
Lightning Impulse Current	12.5 kA, 50 kA
Material	Aluminium
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	TS35 DIN Rail
Number of Poles	3
Number of Ports	1
Operational Temperature	-40 to 85 deg C
Phase	3
Rated Current	150 kA (L-N), 60 kA (N-PE)
Rated Short Circuit Current	50 kA
Rated Voltage	230 VAC
Response Time	<100 ns (N-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<800V (L-N)
Weight	360 g
Width	95 mm

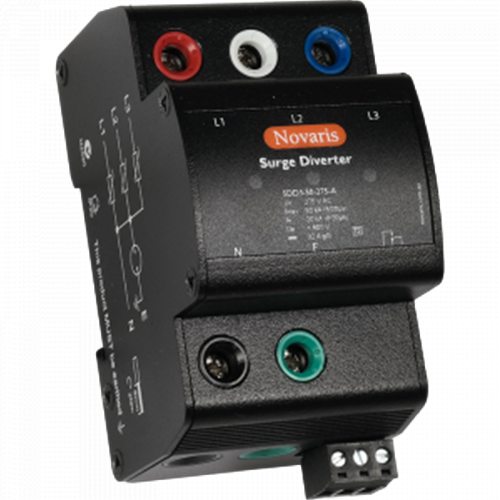

Novaris SDD3-150-275-A Surge Diverter 12.5kA 50kA 3-P 3 PH 150kA 60kA 230VAC TS35 IP20
