Specifications

Product Type	DINsafe Surge Diverter
Brand	Novaris
Series	SDD3
Application	Power, Distribution Boards and Domestic MSB, Commercial and Industrial
Connection Type	Shunt
Max. Backup Fuse	16 A
Max. Continuous Operating Voltage (AC/DC)	275 V AC
No. of Phases	3
Communication Ports	1
Modes of Protection	L-N, L-PE, N-PE
Rated Current	20 kA (L-N), 25 kA (N-PE)
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Response Time	<100 ns (N-PE)
Voltage Protection Level Up	1500 V
Max. Discharge Current Imax (8/20µs)	20 kA
Short Circuit Current Rating	25 kA
Nominal Discharge Current Inom (8/20µs)	10 kA
Display	LED Power and Thermal Failure
Material	Aluminium
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	16 mm2
Tightening Torque	2 N-m
Depth	95 mm
Height	70 mm
Weight	305 g
Width	54 mm
Humidity	5-70%
Operating Temperature	-40°C to 70°C
IP Rating	IP20
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, IEEE 62.41.2:2002, UL 1449 3rd Edition

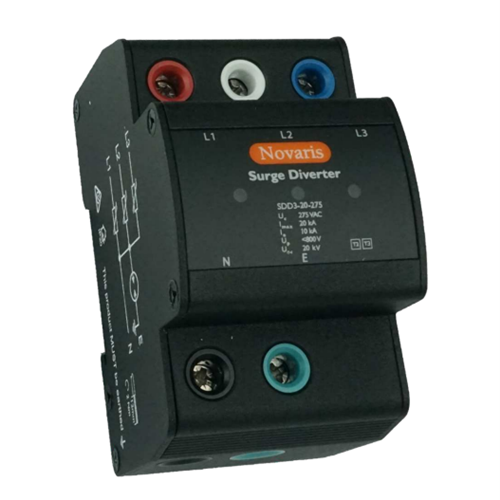

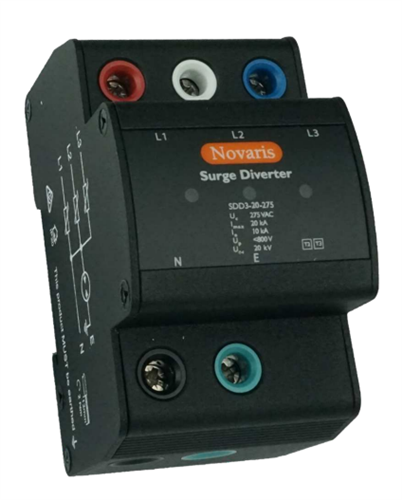

Novaris SDD3-20-275 Surge Diverter 3 PH 20kA 25kA 230VAC Shunt TS35 Aluminium IP20
